In today’s world, where electrical systems form the backbone of industries and households alike, the need for efficient and reliable cabling solutions cannot be overstated. Among the numerous cable options available, PVC multi-core cables stand out as a versatile and robust choice for a wide range of applications.
This blog delves into the structure, benefits, and applications of PVC multi-core cables, shedding light on why they are a preferred choice for electrical installations.
What Are PVC Multi-Core Cables?

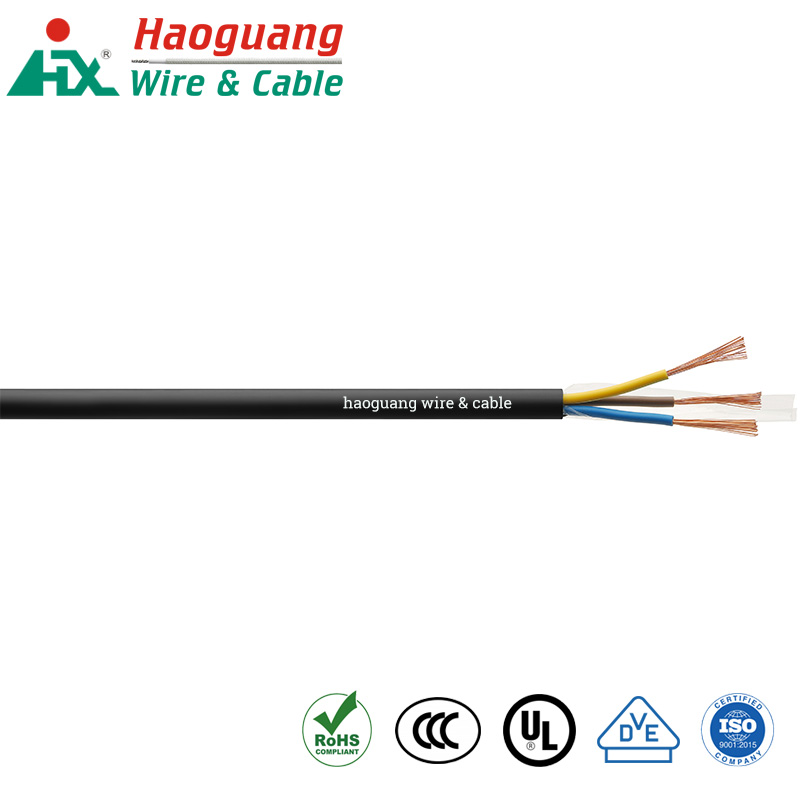

PVC multi-core cables are electrical cables that consist of multiple insulated cores (wires) bundled together and enclosed in a protective outer sheath made of polyvinyl chloride (PVC). Each core is insulated to prevent electrical interference or short circuits, and the PVC outer jacket provides durability and protection against environmental factors.
These cables are widely used in both residential and industrial applications due to their versatility, safety, and cost-effectiveness.
Key Features of PVC Multi-Core Cables
1. Multiple Cores
- Contain two or more insulated wires within a single outer sheath, enabling the transmission of multiple electrical signals or power supplies.
2. PVC Insulation and Sheathing
- Offers excellent electrical insulation, fire resistance, and resistance to moisture and chemicals.
3. Flexibility
- Designed for easy installation and routing, even in tight spaces.
4. Color Coding
- Each core is color-coded or numbered for easy identification during installation and maintenance.
Advantages of PVC Multi-Core Cables
1. Durability
- The PVC outer sheath provides excellent protection against wear and tear, moisture, and environmental factors.
2. Safety
- Flame-retardant properties make PVC multi-core cables a safer choice for electrical installations.
3. Cost-Effective
- PVC is an affordable material, making these cables a budget-friendly option without compromising quality.
4. Versatility
- Suitable for low and medium-voltage applications across a variety of industries.
5. Ease of Installation
- Lightweight and flexible design simplifies the installation process, saving time and effort.
6. Resistance to Chemicals
- Ideal for environments where exposure to oils, acids, or alkalis is common.
Applications of PVC Multi-Core Cables
1. Residential Wiring
- Used in homes for lighting, power outlets, and appliances due to their safety and flexibility.
2. Industrial Automation
- Widely used in factories for powering machinery, sensors, and control systems.
3. Telecommunications
- Provide reliable connections for communication equipment and network systems.
4. Automotive Industry
- Serve as wiring solutions for vehicles, ensuring smooth transmission of electrical signals.
5. Building Management Systems
- Power and control HVAC, fire alarms, and security systems in commercial buildings.
6. Marine and Offshore Applications
- Resistant to moisture and saltwater, making them ideal for marine environments.
How to Choose the Right PVC Multi-Core Cable
1. Voltage Rating
- Ensure the cable matches the voltage requirements of your application.
2. Number of Cores
- Determine the number of cores needed based on the connections required.
3. Conductor Material
- Copper is the most common choice for its superior conductivity, but aluminum is a cost-effective alternative.
4. Insulation Thickness
- Thicker insulation provides better durability and safety, especially for high-stress environments.
5. Environmental Conditions
- Consider factors like temperature, humidity, and exposure to chemicals when selecting a cable.
6. Compliance with Standards
- Choose cables that meet international safety and quality standards such as ISO, IEC, or UL certifications.
Maintenance Tips for PVC Multi-Core Cables
1. Regular Inspections
- Check for visible damage, wear, or signs of degradation in the insulation.
2. Avoid Overloading
- Ensure the cables are not subjected to electrical loads beyond their rated capacity.
3. Proper Installation
- Follow manufacturer guidelines to avoid bending or twisting that could damage the cable.
4. Environmental Protection
- Use additional protective measures in harsh environments to prolong the cable’s lifespan.
Conclusion
PVC multi-core cables are indispensable in modern electrical and industrial systems. Their combination of durability, safety, and cost-effectiveness makes them a trusted choice for a variety of applications. Whether you’re wiring a residential property or designing an industrial automation system, PVC multi-core cables provide the reliability and performance you need.
