Information about Braided Rubber Single Core Cables

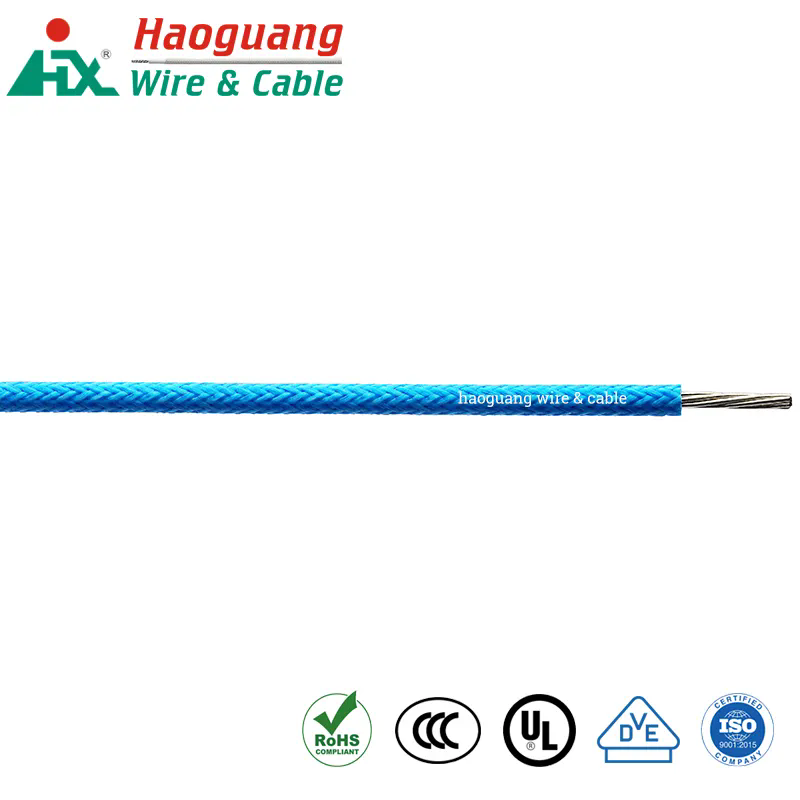

Braided rubber single-core cable is a type of electrical cable designed for various applications requiring flexibility, durability, and protection. This type of cable typically consists of a single conductor encased in a braided rubber sheath, providing mechanical strength and resistance to environmental factors. Here's a detailed overview of braided rubber single-core cables:

Key Features:

1. Single-Core Conductor:

  - Conductor Material: Usually made from copper or aluminum, providing excellent electrical conductivity.

  - Core Insulation: The conductor is often insulated with a layer of rubber or another insulating material to prevent electrical shorts and protect against environmental conditions.

2. Braided Rubber Sheath:

  - Protection: The braided rubber sheath offers mechanical protection against abrasion, impact, and chemical exposure.

  - Flexibility: Provides flexibility, allowing the cable to bend and move without damage, making it suitable for dynamic applications.

3. Temperature Range:

  - Operating Temperature: Designed to operate over a wide temperature range, depending on the rubber compound used in the sheath.

4. Electrical Ratings:

  - Voltage Rating: Typically rated for various voltage levels, depending on the application and insulation type.

Applications:

1. Automotive: Used for wiring in vehicles, including engine compartments and undercarriage areas where flexibility and durability are crucial.

2. Industrial Machinery: Ideal for applications where the cable is subject to movement or exposure to harsh conditions, such as in manufacturing and processing equipment.

3. Marine: Suitable for marine environments where the cable is exposed to moisture, salt, and mechanical stress.

4. Electrical Installations: Employed in various electrical installations requiring a robust and flexible cable, such as in power tools and machinery.

Benefits:

1. Durability: The braided rubber sheath enhances the cable's resistance to physical damage, making it suitable for demanding environments.

2. Flexibility: Offers excellent flexibility, allowing for ease of installation in tight or dynamic spaces.

3. Mechanical Protection: Provides protection against abrasion, impact, and other mechanical stresses.

4. Weather Resistance: Resists moisture, chemicals, and temperature extremes, extending the cable's lifespan in challenging conditions.

Types of Braided Rubber Single-Core Cables:

1. Standard Braided Rubber Cables:

  - Construction: Single copper or aluminum core with a braided rubber outer sheath.

  - Applications: General-purpose use where durability and flexibility are required.

2. High-Temperature Braided Rubber Cables:

  - Construction: Designed with high-temperature-resistant rubber compounds.

  - Applications: Suitable for environments with elevated temperatures, such as engine compartments.

3. Oil-Resistant Braided Rubber Cables:

  - Construction: Includes rubber compounds resistant to oils and chemicals.

  - Applications: Ideal for use in environments with exposure to oils and fuels.

Installation:

1. Preparation: Strip the insulation from the conductor to the appropriate length, ensuring no damage to the wire strands.

2. Connection: Connect the conductor to the terminal or connector, ensuring a secure and reliable electrical connection.

3. Protection: Ensure the cable is properly routed and supported to prevent mechanical damage during operation.

4. Testing: After installation, test the cable to ensure it is functioning correctly and there are no electrical issues.

Maintenance:

1. Inspection: Regularly inspect the cable for signs of wear, damage, or degradation.

2. Cleaning: Keep the cable clean and free from debris or contaminants that could affect its performance.

3. Replacement: Replace any damaged or worn cables to maintain safety and functionality.

Selection Considerations:

- Conductor Size: Choose the appropriate conductor size based on the current-carrying requirements and application.

- Sheath Material: Select the rubber compound that matches the environmental conditions and mechanical stresses of the application.

- Voltage Rating: Ensure the cable's voltage rating meets or exceeds the requirements of the application.

Braided rubber single-core cables are designed to provide reliable electrical performance in challenging conditions, combining flexibility, durability, and protection.
