Function of Automotive Condenser

2024-06-27

An automotive condenser, specifically in the context of a vehicle's air conditioning system, plays a critical role in cooling and condensing refrigerant vapor into liquid form. Here’s a detailed overview of what an automotive condenser is and its function within the vehicle:

Function:

1. Heat Exchange:

  - The automotive condenser is part of the vehicle's air conditioning (AC) system and works alongside the compressor, evaporator, and expansion valve or orifice tube.

  - It receives high-pressure, high-temperature refrigerant vapor from the compressor.

2. Cooling Process:

  - The condenser dissipates heat from the refrigerant vapor, causing it to condense into a high-pressure liquid.

  - This process releases heat absorbed from inside the vehicle's cabin to the outside air, thus cooling the refrigerant.

3. Pressurization:

  - After condensation, the now-liquid refrigerant flows to the expansion valve or orifice tube, where it undergoes a pressure drop.

  - This pressure drop causes the refrigerant to evaporate and absorb heat from the cabin air, resulting in cool air blowing into the vehicle.

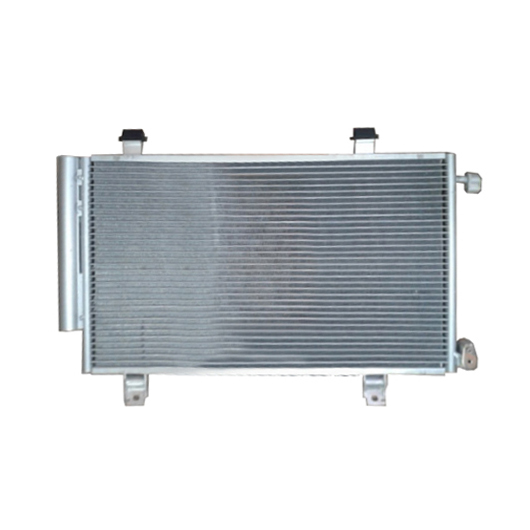

Construction and Design:

1. Structure:

  - Typically constructed of aluminum or copper tubing with aluminum fins to maximize heat transfer efficiency.

  - The tubing allows refrigerant to flow through while the fins increase the surface area for heat dissipation.

2. Types:

  - Parallel Flow Condensers: Modern designs that offer increased efficiency and compact size compared to traditional tube-and-fin condensers.

  - Tube-and-Fin Condensers: Older design where refrigerant flows through tubes surrounded by fins.

Location and Installation:

- Location: Positioned in front of the vehicle's radiator, where it can receive airflow to aid in heat dissipation.

- Installation: Integrated into the vehicle's AC system, typically mounted in front of the radiator and behind the grille for optimal airflow.

Maintenance and Repair:

- Cleaning: Regular cleaning of the condenser fins to remove dirt, debris, and insects improves efficiency.

- Leak Repair: Seal or replace the condenser if leaks are detected, as refrigerant leaks can lead to AC system inefficiency or failure.

- Replacement: If damaged or corroded, replacement may be necessary to restore proper AC function.

Importance in Vehicle Comfort and Efficiency:

- Cooling Efficiency: Essential for providing cool air in the vehicle’s cabin during hot weather.

- Fuel Efficiency: Proper functioning of the AC system helps maintain overall vehicle efficiency by reducing strain on the engine.

- Driver Comfort: A functional condenser contributes to a comfortable driving experience, especially in warmer climates.

In summary, an automotive condenser is a vital component of a vehicle’s air conditioning system, responsible for cooling and condensing refrigerant vapor into liquid form, thus enabling the AC system to provide cool air to the vehicle’s cabin. Proper maintenance and timely repair or replacement ensure efficient operation and driver comfort.
