Features of right-angle pogo pins

2024-02-03

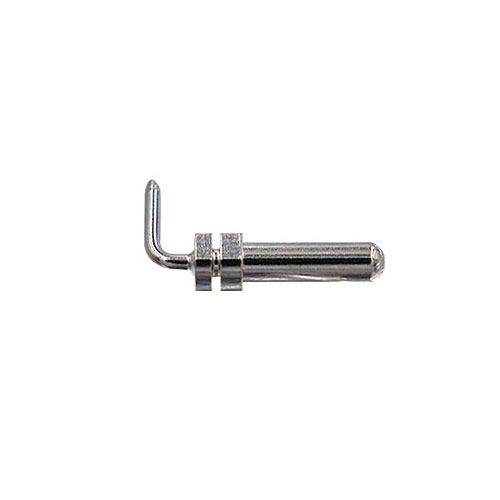

A right-angle pogo pin, also known as a right-angle spring-loaded contact pin or right-angle spring-loaded connector, is a specialized electrical connector designed with a right-angle orientation. These connectors are used when a perpendicular or right-angle connection is required between the mating components.

Key features of right-angle pogo pins include:

1. Right-Angle Orientation: The key characteristic of these pogo pins is their right-angle orientation, allowing them to make electrical connections at a 90-degree angle. This is useful in situations where a straight or vertical connection is not practical.

2. Spring-Loaded Design: Similar to standard pogo pins, right-angle pogo pins have a spring-loaded design. The plunger is spring-loaded to provide the necessary force for establishing and maintaining electrical contact with the mating surface.

3. Compact Design: Right-angle pogo pins are designed to be compact, making them suitable for applications where space is limited. The right-angle configuration allows for more flexibility in designing compact and space-efficient electronic devices.

4. High Current Capacity: Depending on the specific design and application requirements, right-angle pogo pins can be engineered to handle higher electrical currents. This makes them suitable for applications where a right-angle connection with high-current capability is needed.

5. Variety of Sizes and Configurations: Right-angle pogo pins come in various sizes and configurations to accommodate different application requirements. This includes variations in pin size, spring force, and materials.

6. Durability: These connectors are constructed with durable materials to withstand the mechanical stresses associated with repeated mating and unmating cycles. The materials used are often chosen for their wear resistance and longevity.

7. Application Areas: Right-angle pogo pins are commonly used in electronic devices, PCB (Printed Circuit Board) designs, battery connectors, and other applications where a right-angle electrical connection is necessary.

8. Customization: Manufacturers may offer customization options for right-angle pogo pins to meet specific design and performance requirements. Customization can include variations in plunger shape, spring force, and materials.

These connectors are particularly useful in applications where the form factor or layout of the electronic components requires a right-angle connection. The spring-loaded design ensures reliable electrical connections even in situations where there may be slight misalignment between the mating components.
