Features of a flange self-locking nut

2024-01-03

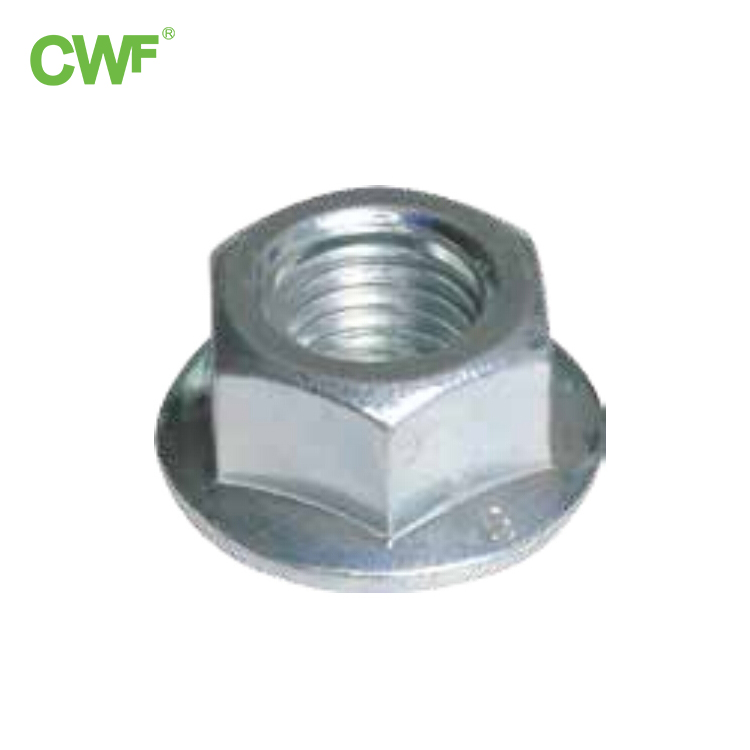

A flange self-locking nut is a type of nut that incorporates a built-in locking mechanism to prevent it from loosening due to vibrations or other external forces. This type of nut is designed to provide a secure and reliable connection without the need for additional locking devices such as washers or locking nuts.

Key features of a flange self-locking nut include:

1. Flange Design:

  - The nut has a built-in flange, which is an extended flat rim around its circumference. This flange serves multiple purposes, including providing a larger surface area for better load distribution and acting as a locking element.

2. Integrated Locking Mechanism:

  - The self-locking feature is often achieved through the use of a prevailing torque locking element. This element can take the form of nylon inserts, metal inserts, or other proprietary designs that create friction between the nut and the mating surface.

3. Vibration Resistance:

  - The integrated locking mechanism helps resist the effects of vibrations and external forces that could cause traditional nuts to come loose over time.

4. Single-Use:

  - Flange self-locking nuts are typically designed for single-use applications. Once tightened and then loosened, the locking feature may lose its effectiveness, and the nut may not provide the same level of locking performance.

5. Material and Coating:

  - These nuts are often made from materials such as steel, stainless steel, or other alloys, depending on the application requirements. Additionally, they may have coatings or finishes to enhance corrosion resistance.

6. Common Applications:

  - Flange self-locking nuts are used in a variety of applications where vibration resistance and reliability are critical. Examples include automotive and aerospace industries, machinery, and other equipment where nuts are subjected to dynamic forces.

7. Sizes and Standards:

  - These nuts are available in various sizes and may conform to industry standards such as those set by organizations like the International Organization for Standardization (ISO) or the American National Standards Institute (ANSI).

It's important to choose the correct flange self-locking nut for a specific application based on factors such as load requirements, environmental conditions, and industry standards. Additionally, proper tightening torque should be applied during installation to ensure optimal performance of the self-locking feature. Always refer to manufacturer specifications and guidelines for the appropriate use and installation of flange self-locking nuts.
