Everything You Need to Know About COB Fine Pitch LED Displays

2024-10-22

COB (Chip-on-Board) fine pitch LED displays are revolutionizing the way we experience high-definition visuals, offering excellent performance for both indoor and outdoor applications. This FAQ-style blog explores what makes COB technology unique and why it's a preferred choice for high-end LED displays.


1. What is a COB Fine Pitch LED Display?

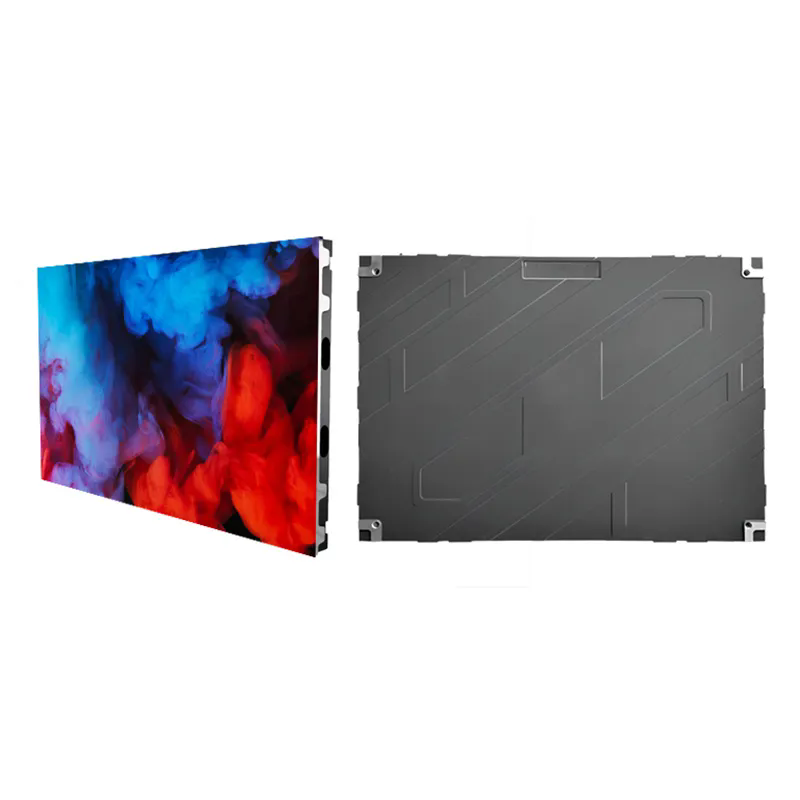

A COB (Chip-on-Board) fine pitch LED display is a high-resolution display where tiny LED chips are directly mounted onto a printed circuit board (PCB) and sealed. "Fine pitch" refers to the small distance (pixel pitch) between LED pixels, allowing the display to show crisp and detailed visuals even up close.


The COB technology ensures seamless integration of the LEDs, improving durability and image clarity. These displays are often used in control rooms, corporate settings, retail stores, and broadcast studios.


2. How is COB different from traditional SMD technology?


COB and SMD (Surface-Mounted Device) are two methods of manufacturing LED displays:

SMD technology places individual LED diodes on a surface, making them visible and exposed to potential damage.

COB technology mounts multiple LED chips closely together on a board, creating a seamless surface and covering them with protective resin.


Key Differences:

Durability: COB is more resistant to impact, dust, and moisture.

Better Heat Dissipation: COB has lower thermal resistance, allowing for more stable performance over time.

Visual Performance: COB displays offer higher contrast and uniformity, especially in fine pitch displays.


3. What are the benefits of a fine pitch COB LED display?


High Resolution: With small pixel pitches (as low as 0.9mm to 1.5mm), these displays offer sharp and detailed images, making them perfect for close-up viewing.

Seamless Viewing Experience: The fine pitch ensures no visible gaps between modules, providing a continuous, immersive display.

Wide Viewing Angles: COB displays maintain excellent image quality even when viewed from extreme angles.

Enhanced Durability: The protective resin covering reduces the risk of physical damage and dust contamination, extending the lifespan.

Energy Efficiency: COB technology consumes less power while maintaining high brightness levels, ideal for both indoor and outdoor settings.


4. Where are COB fine pitch LED displays typically used?


COB fine pitch LED displays are used in environments that require high resolution and reliability, such as:

Broadcast studios: For real-time visuals and close-up camera work.

Control rooms: In traffic monitoring centers, command centers, and security rooms.

Corporate lobbies and boardrooms: For video walls and presentations.

Luxury retail stores: To display high-quality product advertisements.

Museums and exhibitions: For immersive digital content.

Airports and transportation hubs: Displaying schedules and important announcements.


5. How does pixel pitch impact the viewing experience?


Pixel pitch refers to the distance between two adjacent pixels on a display (measured in millimeters). The smaller the pixel pitch, the higher the resolution and the closer the viewer can sit without noticing individual pixels.


For example:

1.2mm pitch: Ideal for close-range viewing like in control rooms or luxury retail displays.

1.5mm pitch: Suitable for medium-range viewing in conference rooms.

2.5mm pitch and above: Used for larger public displays such as at airports.


6. How energy-efficient are COB fine pitch LED displays?


COB technology allows for better heat management and lower power consumption compared to traditional LED displays. Since the LED chips are densely packed and share a circuit board, they require less energy to maintain brightness, resulting in:

Lower operational costs

Reduced heat generation, which minimizes the need for cooling systems


7. What maintenance do COB LED displays require?


Maintenance for COB displays is minimal compared to traditional SMD displays due to their enhanced durability. However, to ensure long-term performance:

Regular cleaning: Use soft, dry cloths to remove dust.

Temperature control: Ensure proper ventilation in the installation area to prevent overheating.

Module replacement: If a section fails, individual modules can be replaced without affecting the entire display.


COB displays are also less prone to pixel damage, reducing repair frequency.


8. Are COB fine pitch LED displays waterproof?


While many COB displays offer water-resistant features, not all are fully waterproof. Some models are rated with IP65 or IP68 certifications, meaning they can withstand moisture and dust, making them suitable for outdoor installations. For indoor models, water resistance is less critical, but the sealed surface still provides protection against accidental spills or humid conditions.


9. What are the challenges of using COB fine pitch LED displays?


Though COB technology offers many benefits, there are a few challenges:

Higher initial cost: Fine pitch displays with COB technology are more expensive than standard LED options.

Complex installation: Requires expert calibration to ensure seamless alignment of modules.

Weight: COB displays can be heavier than traditional displays, demanding stronger wall mounts and support structures.


Despite these challenges, the long lifespan, durability, and superior visual quality often make COB fine pitch LED displays a worthwhile investment.


10. How do I choose the right COB fine pitch LED display?


Here are a few factors to consider when selecting a COB fine pitch LED display:

Pixel pitch: Choose a pixel pitch that matches your viewing distance.

Brightness: Look for displays with adjustable brightness levels for indoor or outdoor use.

Installation space: Ensure the display size fits your wall or stand requirements.

Control system: Make sure the display is compatible with your existing software or controller setup.

Support and warranty: Choose a vendor that offers good technical support and warranty coverage.


Conclusion


COB fine pitch LED displays provide exceptional resolution, durability, and energy efficiency, making them the ideal choice for high-end installations in industries like broadcasting, retail, and corporate environments. While the initial investment may be higher than traditional LED displays, their long-term performance, minimal maintenance, and immersive visuals make them a smart solution for those seeking cutting-edge display technology.


With the right selection and proper maintenance, COB fine pitch LED displays can elevate any space by delivering unmatched visual experiences.
