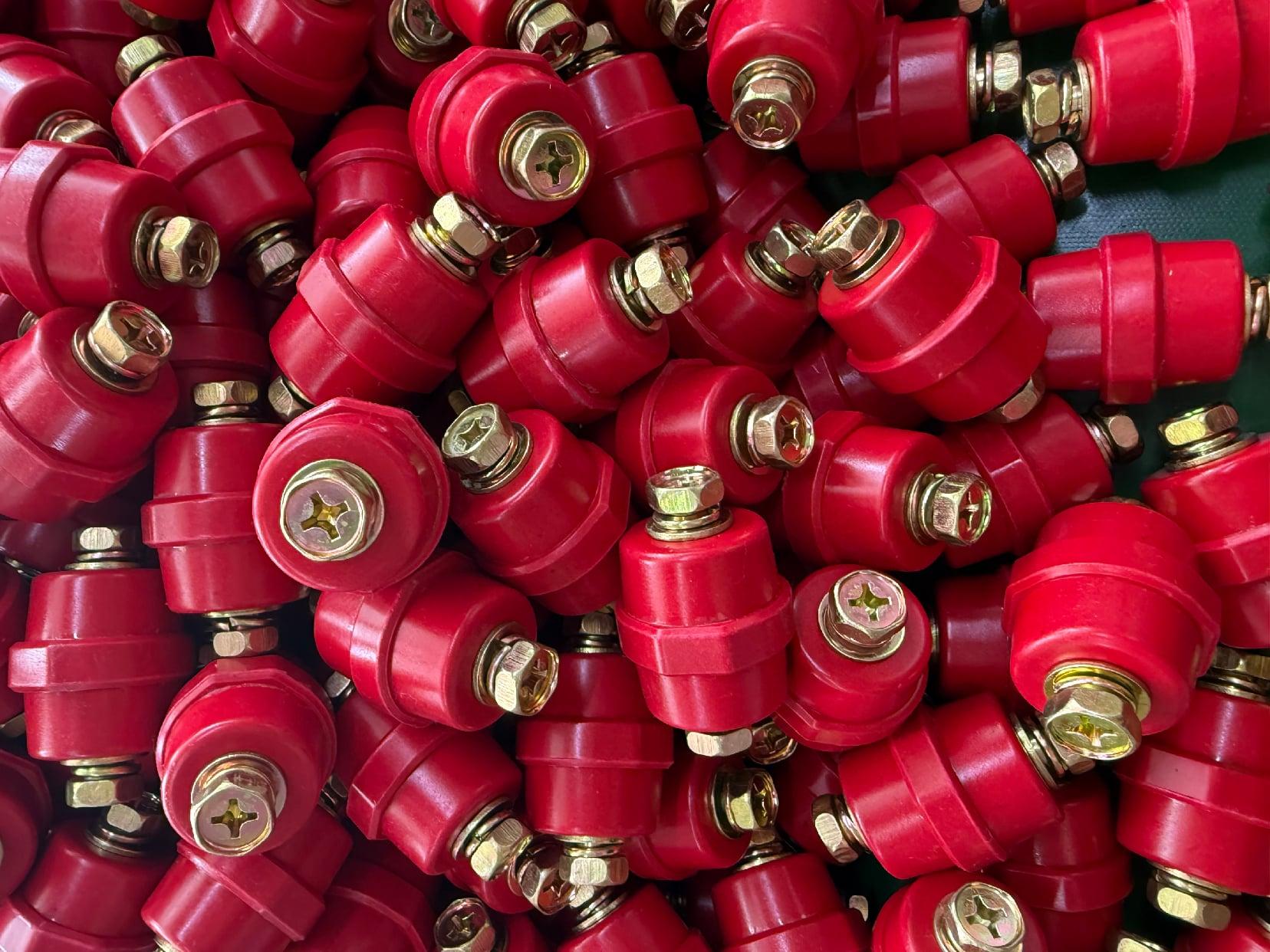

Busbar Insulator ODM – From Custom Design to Production Success

Off-the-shelf busbar insulators rarely match a custom electrical layout. MOLDVOLT approaches it differently: ODM from initial design through full production. This post walks through the steps that turn your specifications into a successful insulator run.

Ground-Up Design: Turning Your Electrical Specs into Moldable Reality

A list of voltage thresholds and current ratings rarely captures what a device actually needs to survive in the field. Ground-up design starts before the schematic—pulling apart the environmental stresses, the connector mating cycles, the thermal hotspots that only appear after six hours of continuous load. Instead of bending an off-the-shelf module to fit, the board geometry, layer stackup, and component placement emerge from those raw electrical specs as a single coherent shape.

Iteration happens in the physical realm early, with breadboarded sub-circuits and 3D-printed enclosures that host real connectors and real heat sinks. When a spec shifts—say, a sleep current drops from 40 microamps to 12—the change doesn't ripple through a patchwork of compromises. The layout reflows because the constraints were built in from the first copper pour, not bolted on after a reference design was already frozen.

What leaves the bench is not a paper design that needs heroic debugging. It's a board that matches the way the enclosure fits in a hand, the way a cable bends at the strain relief, and the way firmware wakes from deep sleep without glitching the analog front end. That's the difference between translating a datasheet and turning electrical specs into something you can actually hold, drop, and ship.

Material Matchmaking: Insulation That Survives Your Operating Temperatures

Most insulation specs start with a peak temperature, but that number rarely tells the full story. A material rated for 600°C can turn brittle after repeated cycles if its organic binder degrades. You need to map the actual operating range—including soak times and cool-down rates—before picking anything.

Ceramic fiber is a workhorse above 1000°C, but it loses loft if compressed or blasted by high-velocity gases. Between 300°C and 800°C, calcium silicate or mineral wool often fits the budget, though mineral wool needs protection from moisture. Aerogel blankets shine in tight retrofits because of their low thermal conductivity, but they cost more and handle rough mechanical abuse poorly.

Steady temperature is only one variable. Thermal shock, corrosive flue gases, and vibration can kill insulation faster than heat alone. For a furnace cycling daily, a slightly lower temperature rating with better flexibility and chemical resistance often outperforms a high-temp board that cracks. Run small-scale tests under your actual cycling and atmosphere conditions before committing.

Prototype to Production: The Tooling Steps Most Shops Skip

The jump from prototype to full production rarely fails because the design is wrong. It fails because the tooling steps that bridge the two are treated as optional. One of the most overlooked is material-specific shrink testing. A shop will 3D print a prototype, check the fit, and then cut steel for the injection mold without ever running a shrink study on the actual production resin. The result is a mold that produces parts consistently out of tolerance, and the team chases adjustments for weeks. Adding a pre-tooling phase where you measure shrink rates across a few cavity pressures costs a day or two and saves thousands in rework.

Tool wear compensation is another step that only shows up after the first batch of rejected parts. During prototype machining, tools are fresh and dimensions hold. But in production, a dull end mill or worn mold insert gradually shifts critical features. Shops that skip the step of logging cutting meters per tool and setting automatic wear offsets end up reacting to scrap instead of preventing it. A simple rule, like changing the finishing tool after a fixed number of cycles or monitoring spindle load for sudden changes, keeps the process stable before inspection catches the drift.

Process window validation gets squeezed out when delivery dates loom. A single successful trial shot or first article inspection is treated as proof the tool is ready. What gets skipped is the deliberate variation: running a small DOE across melt temperature, pack pressure, and cooling time to see where the process remains robust. Without this, production runs on a knife-edge setting that collapses with normal batch-to-batch material variation. Spending half a day mapping the stable window means the line doesn't stop every time a new lot of resin arrives.

Precision Molding: How We Keep Flash and Voids Out of the Picture

Flash and voids rarely announce themselves until the part is already in your hand. Our approach to precision molding starts long before any resin reaches the cavity. By fine-tuning gate placement, clamp pressure, and venting geometry for each specific geometry, we eliminate the root conditions behind both defects. It’s not a generic checklist—it’s a deliberate set of adjustments derived from how a given polymer actually flows under heat and shear.

Tool maintenance matters just as much as initial design. We keep our molds at tight tolerances and monitor wear patterns that can open micro-gaps over time. When a parting line starts to lose its crispness, we address it immediately rather than waiting for visible flash. For voids, our process uses staged injection profiles and back pressure control that prevent trapped gas pockets from forming in thick sections. Every shot gets logged, so any drift in cavity fill is caught before it becomes a defect batch.

The difference shows up in consistency. Parts come out with clean edges and solid cross-sections, without secondary trimming or internal porosity. That reliability means less rework downstream and fewer surprises during assembly. It’s not magic—just a combination of material knowledge, precise machine tuning, and a refusal to accept borderline parts as normal.

In-House Test Rigs: Simulating Real Faults Before You Ever See a Part

A dedicated in-house test rig does more than spin a motor or cycle a switch. It recreates the messy, unpredictable conditions that parts face in the field—voltage spikes, thermal shock, contaminated lubricants, misalignment, and sudden load reversals. By embedding sensors where failures typically start, engineers can watch a bearing spall or a solder joint fatigue in real time, capturing the exact moment and mode of breakdown before any customer ever opens a box.

Building these rigs often means tearing apart competitor units, studying warranty returns, and talking to service techs who see the same failures repeatedly. The rigs are then tuned to accelerate those specific failure modes—sometimes running a part through five years of wear in two weeks. What makes this approach different is the focus on realistic faults rather than idealized stress tests. A connector might be dunked in salt fog while being vibrated at its resonant frequency, or a gearbox run dry just long enough to simulate a missed lubrication interval.

The payoff shows up in fewer field failures and shorter debugging cycles. When a new revision survives the rig's worst-case scenarios, confidence grows that the part will hold up under conditions no datasheet can fully describe. Teams also keep a library of recorded failure signatures, so a complaint from the field can be matched to a known simulation pattern and diagnosed in hours instead of weeks.

Packing and Delivery: Insulators Arriving Ready to Bolt On, Not Just Boxed

Every crate leaves our dock with the insulator already seated in its mounting hardware, hardware torqued to the spec stamped on the side of the crate. You won't find a bag of loose bolts buried under foam or a washer count that only works if you reuse old parts. What gets unloaded at your site is the same assembly we tested before it was sealed.

The packaging itself is built around the ceramic—or composite—shell, not around standard box dimensions. We cut high-density polyurethane nests to the exact profile of each skirt, so vibration from a forklift or a rough road doesn't translate into micro fractures. Wooden braces lock the flange faces in place, and desiccant strips inside the wrap keep condensation from settling where the metal meets the glaze.

When the crate arrives, the only step left is rigging it into position. The lifting eyes are left exposed, the mounting holes are aligned by the factory jig, and the torque pattern is printed on a weatherproof tag tied to the top clamp. That tag stays with the unit until startup, so the crew on the ground isn't guessing which bolt came from which crate.

FAQ

Conclusion

Turning a set of electrical specifications into a moldable busbar insulator calls for more than just choosing a standard shape and hoping it fits. We start by working through your drawings, creepage and clearance targets, and mounting constraints to build a ground-up design that accounts for how the part will actually be assembled and stressed in service. That means selecting insulation materials not just by datasheet temperature ratings, but by how they behave under thermal cycling, partial discharge, and mechanical load. A polyamide that looks fine on paper can crack after a few hundred hot-cold swings, so we lean on grades with proven long-term stability for your operating window. Once the design and resin are locked, we move into tooling with an eye on the stages most shops rush past: gate placement, venting, and steel selection get resolved before the first shot, not discovered mid-run. This carry-through from CAD to cavity avoids the usual back-and-forth that burns weeks and budget.

The molding process itself is treated as a discipline, not a lottery. We keep flash and internal voids out of the picture by controlling fill speed, packing pressure, and mold temperature within narrow bands, and by designing runners that deliver resin without trapping air. Before any batch leaves the floor, our in-house test rigs simulate real fault conditions—short-time current, impulse voltage, and mechanical shock—so you are not the first one to find a weak spot. The parts that pass are then packed to arrive ready to bolt on, not just boxed. That means clean edges, protected hardware interfaces, and labeling that matches your line-side inventory. For a busbar insulator ODM program, the real measure of success is not how the samples look, but whether the production run drops into your panel build without a pause.
